RESIDEO

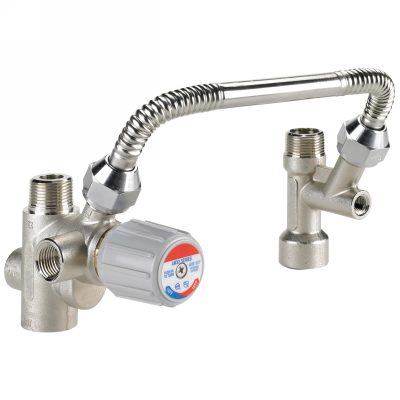

DirectConnect water heater kit including valve, tee, and connector (low lead)

DirectConnect water heater kit including valve, tee, and connector (low lead)

AMX302TLFU-HW

LOGIN TO VIEW PRICE

Overview

AMX300 series DirectConnect™ kits from Resideo reduce installation time while providing industry-leading mixing valve technology, which offers excellent temperature stability and control and minimizes scalding risk to building occupants.

Features

  • Temperature is adjustable using push-twist-release locking hand wheel design and if cold water supply is interrupted, flow reduction occurs in seconds
  • Kit (AMX300TLF or AMX302TLF) includes mixing valve, cold water tee fitting and flexible stainless steel connector. Does NOT include adapters.
  • Recirculation portion option offers fast delivery of heated water to the furthest fixtures, increasing user comfort with more available hot water
  • The alternate hot port bypasses hot water directly from the tank to non-mixed temperature applications
  • Brass/stainless construction with Teflon coated wear surfaces for extended surface
  • Lead free products have products numbers end in LF

resProduct Specifications

Application
Domestic Hot Water
Maximum Safe Operating Pressure (psi)
150 psi
Comments
Low lead Content <.25% by weighted average
Item Type
Product
Approvals, Canadian Standards Association
CSA Certified
Operating Temperature Range (F)
33 F to 80 F (cold water inlet); 100 F to 212 F (hot water inlet)
Operating Temperature Range (C)
0.5 C to 27 C (cold water inlet); 38 C to 100 C) (hot water inlet)
Approvals, Others
NSF/ANSI; IAPMO
Connection Type
Hot Inlet - Female NPT; Mixed Outlet - Male NPT
Minimum flow rate (gpm)
0.25 gpm; Recirculation Port: 1/2 in. NPT; Alternate Hot Port: 1/2 in. NPT
Pipe Size (inch)
3/4 in.
Pipe Size (DN)
DN20
Fluid Temperature (C)
Mixed Water Supply--38 C to 63 C
Fluid Temperature (F)
Mixed Water Supply--100 F to 145 F
Capacity (Cv)
2.3 Cv
Valve Type
Mixing Valves
Minimum flow rate (lpm)
0.95 lpm; Recirculation Port: 1/2 in. NPT; Alternate Hot Port: 1/2 in. NPT
Approvals, ASSE
1017
