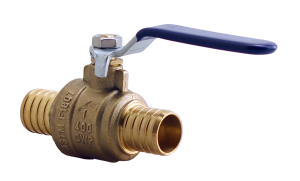

PEX X PEX BALL VALVES (WITH or WITHOUT DRAIN)

Boshart’s Brass Ball Valves are an excellent choice for a variety of applications where there is low risk of corrosion. Most connections come in both a leaded and no lead version to accommodate for potable water.

Boshart’s Brass Ball Valves with a drain are perfect for applications where water needs to be drained from the pipe after the valve. When installing one of these valves make sure the drain is not installed on the supply side of the valve.

• Handle Type Rubber Grip
• Design Standard Port
• Seat Material PTFE
• Connection Type PEX
• Primary Material Brass
• Temperature Range Up to 203°F (95°C)
• Maximum Pressure Rating 400 PSI CWP
• Stem Packing Material PTFE
